Plateau Oxygen Generator: Steady Oxygen Provision in Low-Oxygen Altitudes

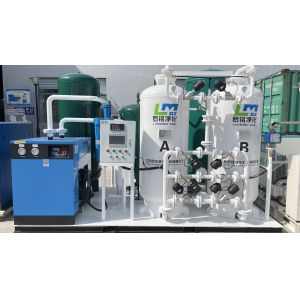

Jiangsu Luoming’s oxygen generation equipment harnesses cutting-edge Pressure Swing Adsorption (PSA) technology to yield top-grade oxygen, emerging as a key solution for the oil and gas sector. This innovative system takes clean compressed air as its feedstock and adopts a high-efficiency zeolite molecular sieve for adsorption.
Product Specifications
| Model | Purity | Flow | Outlet |
| LMO-1 | 93±2% | 1Nm3/h | Regular outlet pressure 1-5Mpa adjustable |
| LMO-5 | 93±2% | 5Nm3/h | |
| LMO-10 | 93±2% | 10Nm3/h | |
| LMO-15 | 93±2% | 15Nm3/h | |
| LMO-20 | 93±2% | 20Nm3/h | |
| LMO-25 | 93±2% | 25Nm3/h | |
| LMO-30 | 93±2% | 30Nm3/h | |
| LMO-40 | 93±2% | 40Nm3/h | |
| LMO-50 | 93±2% | 50Nm3/h | |
| LMO-60 | 93±2% | 60Nm3/h | |
| LMO-70 | 93±2% | 70Nm3/h | |
| LMO-80 | 93±2% | 80Nm3/h | |
| LMO-90 | 93±2% | 90Nm3/h | |
| LMO-100 | 93±2% | 100Nm3/h | |
| LMO-110 | 93±2% | 110Nm3/h | |
| LMO-120 | 93±2% | 120Nm3/h | |
| LMO-130 | 93±2% | 130Nm3/h | |
| LMO-140 | 93±2% | 140Nm3/h | |
| LMO-150 | 93±2% | 150Nm3/h | |
| LMO-180 | 93±2% | 180Nm3/h | |
| LMO-200 | 93±2% | 200Nm3/h | |
PSA Technology Introduction
PSA (Pressure Swing Adsorption) Technology represents a revolution in non-cryogenic air separation and oxygen generation. This advanced system uses a special grade of Zeolite Molecular Sieve (ZMS) for efficient oxygen production.
- The compressed air passes through a Twin Tower PSA module with automatic changeover valves
- After processing through a Refrigerated Dryer, the air is completely dried
- The dried compressed air contacts the Zeolite Molecular Sieves (ZMS) bed
- ZMS has the unique property of preferential adsorption of nitrogen molecules
- The resulting oxygen gas is sent to a surge vessel with maintained minimum pressure via a Back Pressure Regulator
Frequently Asked Questions
Q: What is the terms of payment?
A: T/T, L/C, Western Union etc.
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly provide the following technical information:
- The oxygen generator is customized , please give me the following informations:
1.Oxygen purity 93%±2%,is it ok for you ?or other purity?
2.Capacity_______Nm3/h(If need to fill in cylinders , please confirm how many do you need to fill ?)
3.Discharge pressure _______bar(If fill in cylinders , please confirm the cylinder pressure )
4.Local altitude______m
5.Local voltage _______V(1P&3P)_________HZ
We will recommend the most suitable equipment according to your specific requirements.
